Scheduler Policy

Summary

Currently, in a cluster with many GPU nodes, nodes are not binpack or spread when making scheduling decisions, nor are GPU cards binpack or spread when using vGPU.

Proposal

A node-scheduler-policy and gpu-scheduler-policy can be set in config. The scheduler uses this policy to implement node binpack or spread or GPU binpack or spread. Pod annotations hami.io/node-scheduler-policy and hami.io/gpu-scheduler-policy can override the default scheduler config.

User Stories

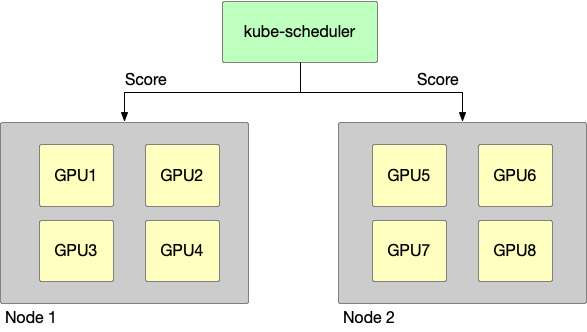

This is a GPU cluster, having two nodes, the following story takes this cluster as a prerequisite.

Story 1

node binpack, use one node’s GPU card whenever possible, e.g.:

• cluster resources:

  • node1: GPU having 4 GPU device
  • node2: GPU having 4 GPU device

• request:

  • pod1: Use 1 GPU
  • pod2: Use 1 GPU

• scheduler result:

  • pod1: scheduled to node1
  • pod2: scheduled to node1

Story 2

node spread, use GPU cards from different nodes as much as possible, e.g.:

• cluster resources:

  • node1: GPU having 4 GPU device
  • node2: GPU having 4 GPU device

• request:

  • pod1: Use 1 GPU
  • pod2: Use 1 GPU

• scheduler result:

  • pod1: scheduled to node1
  • pod2: scheduled to node2

Story 3

GPU binpack, use the same GPU card as much as possible, e.g.:

• cluster resources:

  • node1: GPU having 4 GPU device, they are GPU1,GPU2,GPU3,GPU4

• request:

  • pod1: Use 1 GPU, gpucore is 20%, gpumem-percentage is 20%
  • pod2: Use 1 GPU, gpucore is 20%, gpumem-percentage is 20%

• scheduler result:

  • pod1: scheduled to node1, select GPU1
  • pod2: scheduled to node1, select GPU1

Story 4

GPU spread, use different GPU cards when possible, e.g.:

• cluster resources:

  • node1: GPU having 4 GPU device, they are GPU1,GPU2,GPU3,GPU4

• request:

  • pod1: Use 1 GPU, gpucore is 20%, gpumem-percentage is 20%
  • pod2: Use 1 GPU, gpucore is 20%, gpumem-percentage is 20%

• scheduler result:

  • pod1: scheduled to node1, select GPU1
  • pod2: scheduled to node1, select GPU2

Design Details

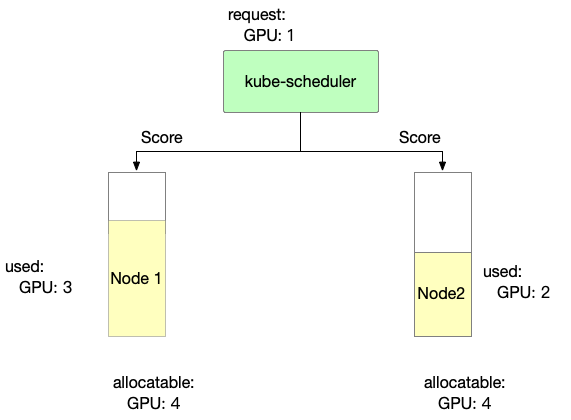

Node-scheduler-policy

Binpack

Binpack mainly considers node resource usage. The more full the usage, the higher the score.

score: ((request + used) / allocatable) * 10

1. Binpack scoring information for Node 1 is as follows

Node1 score: ((1+3)/4) * 10= 10

1. Binpack scoring information for Node 2 is as follows

Node2 score: ((1+2)/4) * 10= 7.5

In Binpack policy, Node1 is selected.

Spread

Spread mainly considers node resource usage. The less it is used, the higher the score.

score: ((request + used) / allocatable) * 10

1. Spread scoring information for Node 1 is as follows

Node1 score: ((1+3)/4) * 10= 10

1. Spread scoring information for Node 2 is as follows

Node2 score: ((1+2)/4) * 10= 7.5

In Spread policy, Node2 is selected.

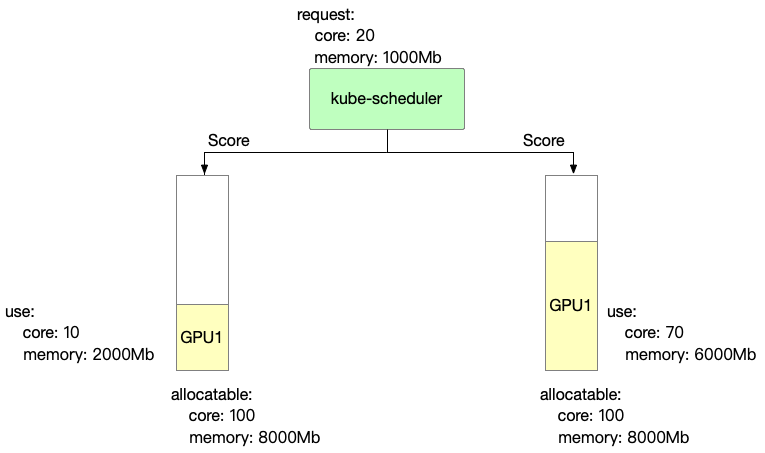

GPU-scheduler-policy

Binpack

Binpack mainly focuses on the computing power and video memory usage of each card. The more it is used, the higher the score.

score: ((request.core + used.core) / allocatable.core + (request.mem + used.mem) / allocatable.mem)) * 10

1. Binpack scoring information for GPU 1 is as follows

GPU1 Score: ((20+10)/100 + (1000+2000)/8000)) * 10 = 6.75

1. Binpack scoring information for GPU 2 is as follows

GPU2 Score: ((20+70)/100 + (1000+6000)/8000)) * 10 = 17.75

In Binpack policy, GPU2 is selected.

Spread

Spread mainly focuses on the computing power and video memory usage of each card. The less it is used, the higher the score.

score: ((request.core + used.core) / allocatable.core + (request.mem + used.mem) / allocatable.mem)) * 10

1. Spread scoring information for GPU 1 is as follows

GPU1 Score: ((20+10)/100 + (1000+2000)/8000)) * 10 = 6.75

1. Spread scoring information for GPU 2 is as follows

GPU2 Score: ((20+70)/100 + (1000+6000)/8000)) * 10 = 17.75

In Spread policy, GPU1 is selected.
